TCAS (Traffic Collision Avoidance System)

Definition

TCAS stands for Traffic Collision Avoidance System. It is an onboard system used in aircraft to reduce the risk of mid-air collisions by monitoring the airspace around an aircraft and providing pilots with collision avoidance instructions.

Relevance to the Industry

TCAS is critical for maintaining air safety, ensuring that aircraft can operate in close proximity without risking collisions. For drones, integrating TCAS technology helps in safely sharing airspace with manned aircraft, thereby reducing the risk of accidents and enhancing overall air traffic management.

How Does the Traffic Collision Avoidance System (TCAS) Work?

The Traffic Collision Avoidance System (TCAS) is an onboard safety system designed to reduce the risk of mid-air collisions between aircraft. TCAS operates independently of ground-based air traffic control (ATC) and provides real-time alerts to pilots about potential conflicts with other aircraft. Here’s a detailed explanation of how TCAS works:

1. System Components

• Transponder: Each aircraft equipped with TCAS has a transponder that transmits and receives signals.
• TCAS Processor: The onboard computer that processes transponder signals to determine the relative positions of nearby aircraft.
• Antennas: Used to send and receive transponder signals to and from other aircraft.
• Display and Audio Alerts: The interface in the cockpit that provides visual and auditory alerts to the pilots.

2. Signal Transmission and Reception

• Interrogation: The system periodically sends out interrogation signals (queries) using the aircraft’s transponder.
• Response: Nearby aircraft with transponders receive these interrogation signals and respond with their own transponder signals, which include information about their position, altitude, and speed.

3. Data Processing

• Position Calculation: The TCAS processor calculates the range, bearing, and altitude of nearby aircraft based on the time it takes for the interrogation signals to travel to the other aircraft and back (round-trip time).
• Relative Motion Analysis: The system continuously monitors the relative positions and velocities of nearby aircraft to assess collision risk. It determines whether the aircraft are on converging paths that could lead to a potential conflict.

4. Collision Avoidance Logic

• Traffic Advisory (TA): When the system detects that another aircraft is within a certain distance and poses a potential threat, it issues a Traffic Advisory. The TA alerts the pilots to the presence of the nearby aircraft and its relative position but does not provide specific avoidance instructions.
• Resolution Advisory (RA): If the system determines that a collision is imminent, it issues a Resolution Advisory. The RA provides specific vertical maneuver instructions to the pilots to avoid the collision, such as “Climb” or “Descend.”

5. Pilot Response

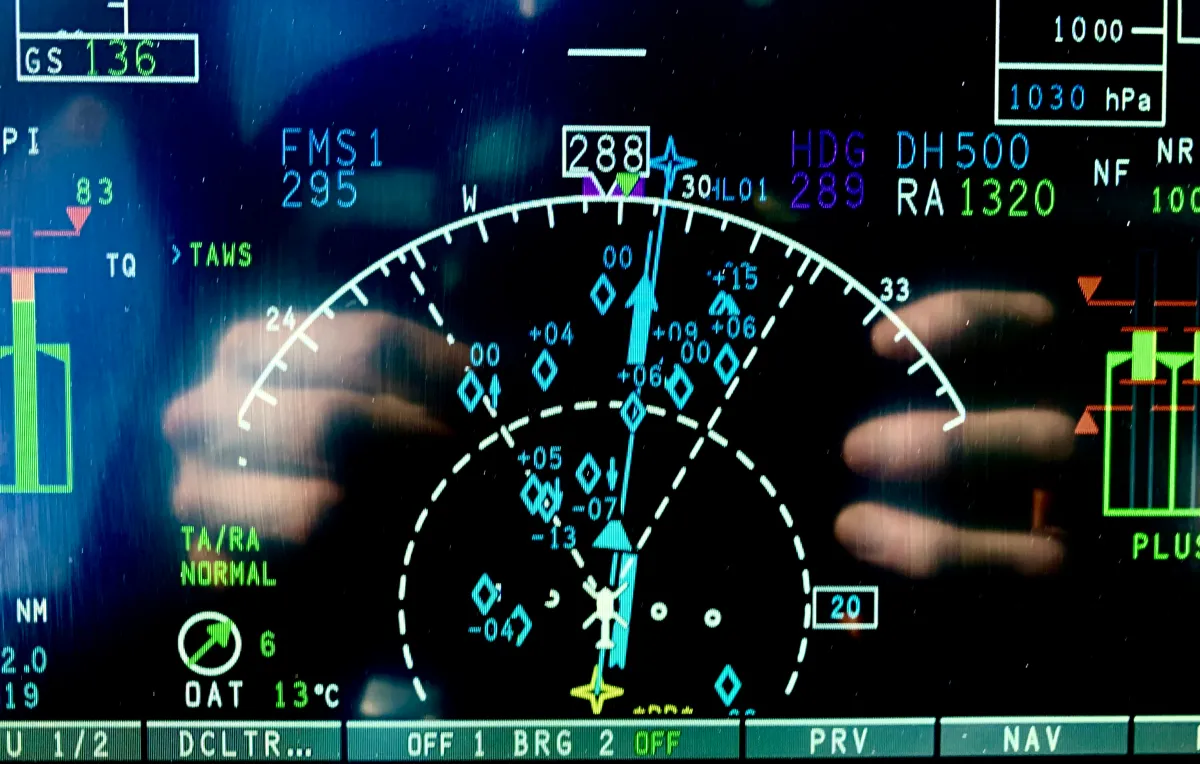

• Visual and Audio Alerts: Pilots receive visual cues on the cockpit display (typically a TCAS indicator) and audio alerts that indicate the nature of the advisory (TA or RA) and the required action.
• Maneuver Execution: In response to an RA, pilots execute the advised maneuver to increase or decrease altitude, following the system’s instructions to avoid the collision.
• Coordination with Other Aircraft: TCAS systems on different aircraft coordinate with each other to ensure that the advised maneuvers are complementary (e.g., one aircraft climbs while the other descends).

6. Return to Normal Flight

• Clear of Conflict: Once the risk of collision has passed and the aircraft are at safe distances from each other, the system issues a “Clear of Conflict” message, allowing pilots to return to their original flight paths.
• Post-Event Reporting: Pilots may report the TCAS event to ATC and log it for post-flight analysis.

7. Applications and Use Cases

• Commercial Aviation: TCAS is widely used in commercial airliners to enhance safety in busy airspaces and during high-density traffic situations.
• General Aviation: Smaller aircraft equipped with TCAS benefit from increased situational awareness and collision avoidance capabilities.
• Military Aviation: Military aircraft use TCAS for similar safety purposes, ensuring safe operations in various airspaces, including training and combat zones.
• Helicopter Operations: TCAS can be adapted for use in helicopters, improving safety in low-altitude and congested airspaces.

8. Technological Advances and Challenges

• Advances: Recent advancements in this technology include improved algorithms for more accurate threat assessment, integration with other onboard systems (like autopilot), and enhanced interfaces for better pilot situational awareness.
• Challenges: Ensuring compatibility with international aviation standards, maintaining accurate transponder data, and minimizing false alarms are ongoing challenges in the development and implementation of TCAS.

Understanding how the Traffic Collision Avoidance System (TCAS) works highlights its crucial role in enhancing aviation safety. By providing real-time alerts and resolution advisories it helps pilots avoid mid-air collisions, contributing to safer skies and more efficient flight operations.

Example in Use

“Integrating TCAS with the drone’s navigation system allowed it to safely operate in a busy airspace, avoiding potential conflicts with other aircraft.”

Frequently Asked Questions about TCAS (Traffic Collision Avoidance System)

1. What is TCAS and how does it work?

Answer: TCAS (Traffic Collision Avoidance System) is a technology designed to prevent mid-air collisions by monitoring the airspace around an aircraft. It detects other aircraft equipped with transponders, evaluates their relative positions and movements, and provides collision avoidance instructions to pilots. TCAS issues traffic advisories (TAs) and resolution advisories (RAs) to help pilots make timely and effective maneuvers to avoid potential collisions.

2. Why is TCAS important for aviation?

Answer: TCAS is important for aviation because it:

• Enhances Safety: Provides real-time alerts and guidance to prevent mid-air collisions.
• Improves Situational Awareness: Helps pilots maintain awareness of nearby aircraft and potential conflicts.
• Supports Air Traffic Management: Assists in the safe coordination of aircraft in busy and controlled airspaces.
• Reduces Pilot Workload: Automates the detection and evaluation of collision risks, allowing pilots to focus on other critical tasks.

3. What are the benefits of TCAS for drones?

Answer: The benefits of TCAS for drones include:

• Increased Safety: Enhances the ability of drones to detect and avoid manned aircraft, reducing collision risks.
• Airspace Integration: Facilitates the safe integration of drones into controlled airspace, allowing for more complex and longer-range operations.
• Real-Time Collision Avoidance: Provides immediate alerts and guidance to operators or autonomous systems, enabling quick responses to potential threats.
• Regulatory Compliance: Helps meet safety standards and regulations required for operating drones in shared airspace.
