What is GCP (Ground Control Point) & How Does it Work?

Definition

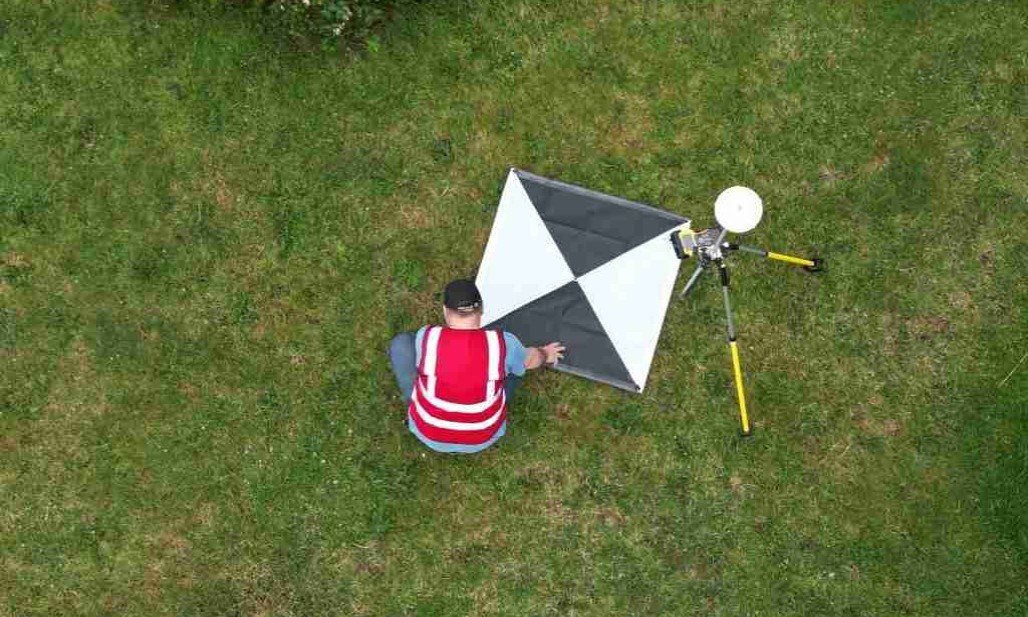

A GCP (Ground Control Point) is a precisely measured reference point on the ground used in aerial mapping and surveying to improve the accuracy of drone-generated maps and 3D models. These points, marked with highly visible targets, are georeferenced using GPS or other positioning systems to align drone imagery with real-world coordinates.

Usage

In drone photogrammetry and LiDAR mapping, GCPs help correct spatial distortions and ensure that generated maps are accurately positioned. Surveyors place GCPs strategically throughout a mapped area and use their known coordinates to calibrate drone-captured data.

Relevance to the Industry

GCPs are essential for industries requiring high-precision mapping, such as construction, land surveying, agriculture, and environmental monitoring. They enhance the accuracy of drone-based topographic models, ensuring reliable measurements for engineering, planning, and asset management.

How Does a Ground Control Point (GCP) Work?

Establishing Reference Accuracy

1. Definition and Purpose of GCPs:
   • What GCPs Do: Ground Control Points (GCPs) serve as physical reference markers with known GPS coordinates that help align drone imagery with real-world locations.
   • Role in Mapping: By integrating GCPs, surveyors correct distortions in aerial images, ensuring accurate positioning and precise measurements in maps and 3D models.
2. How GCPs Improve Geospatial Accuracy:
   • Correcting Georeferencing Errors: Drone images often contain distortions due to camera angles, terrain elevation changes, and lens distortions. GCPs help adjust these errors.
   • Providing Fixed Coordinates: Unlike drone GPS, which may have slight inaccuracies, GCPs offer highly reliable, ground-truth coordinates to refine aerial survey results.

Setting Up and Measuring GCPs

3. Strategic Placement of GCPs:
   • Even Distribution: GCPs should be spread evenly across the survey area, ensuring full coverage for accurate corrections.
   • Placement on Stable Surfaces: GCPs should be located in areas with minimal environmental changes (e.g., avoiding vegetation, moving vehicles, or water surfaces).
4. Measuring GCP Positions:
   • Using High-Precision GNSS Receivers: GCPs are recorded using Real-Time Kinematic (RTK) or Post-Processed Kinematic (PPK) GPS systems, achieving centimeter-level accuracy.
   • Recording Coordinates: Surveyors document each GCP’s latitude, longitude, and elevation to ensure precise integration into the mapping process.

Integrating GCPs in Drone Mapping

5. Capturing Aerial Images with Drones:
   • Overlapping Images: Drones capture a series of images with significant overlap (typically 70–80%) to ensure all GCPs appear in multiple images.
   • Fixed Flight Paths: Pre-planned flight missions ensure consistency and prevent gaps in data collection.
6. Post-Processing in Photogrammetry Software:
   • Aligning Images with GCPs: The GCP coordinates are input into photogrammetry software, such as Pix4D, DroneDeploy, or Agisoft Metashape.
   • Georeferencing Adjustments: The software matches drone images with the known GCP positions, refining the overall map accuracy.
   • Error Reduction: The software minimizes positional errors, aligning drone-captured data with real-world coordinates.

Advantages of Using GCPs

7. Enhancing Survey Precision:
   • Achieving Centimeter-Level Accuracy: GCPs improve positional accuracy significantly compared to standard drone GPS data.
   • Reliable Elevation Data: Elevation corrections are crucial for topographic mapping and construction site planning.
8. Improving 3D Modeling and Digital Elevation Models (DEM):
   • Better Terrain Representation: GCPs enhance elevation data, resulting in more accurate digital elevation models (DEMs).
   • Refining Structure Models: For industries like construction and mining, GCPs ensure detailed 3D representations of infrastructure.

Limitations and Considerations

9. Time and Labor Requirements:
   • Manual Setup: GCP placement and GPS recording require additional time and personnel.
   • Data Processing: While GCPs improve accuracy, integrating them into mapping software requires expertise and computational resources.
10. Alternatives to GCPs:
    • RTK/PPK Drones: Newer drones equipped with RTK or PPK technology can achieve similar accuracy without relying on as many GCPs.
    • Hybrid Approach: Some projects use both RTK/PPK drones and a small number of GCPs for optimal accuracy.

Example in Use:
“The survey team placed multiple GCPs across the construction site to ensure the drone-generated map aligned precisely with real-world coordinates.”

Frequently Asked Questions about GCP (Ground Control Point)

1. Why are GCPs important in drone mapping?

Answer:
GCPs enhance mapping accuracy by:

• Correcting spatial distortions in drone images.
• Aligning aerial data with real-world geographic coordinates.
• Improving precision in topographic surveys and 3D modeling.

2. How are GCPs placed and measured?

Answer:

• Strategic Placement: GCPs are evenly distributed across the survey area to cover all regions effectively.
• High-Precision GPS Measurements: GCPs are recorded using RTK (Real-Time Kinematic) or PPK (Post-Processed Kinematic) GPS receivers to achieve centimeter-level accuracy.

3. What is the difference between GCPs and RTK/PPK drones?

Answer:

• GCPs: Used as reference points to manually correct drone imagery post-flight.
• RTK/PPK Drones: Use real-time or post-processed GPS data to achieve high accuracy without relying on as many GCPs.
