S.Bus (Serial Bus)

Definition

S.Bus, or Serial Bus, is a communication protocol developed by Futaba for transmitting multiple control signals through a single wire between a transmitter and a receiver. This technology is primarily used in radio-controlled (RC) systems, including drones, to streamline and simplify the connection of servos and sensors by allowing multiple channels of control data to be sent over one connection. S.Bus enables efficient and high-speed data transmission, reducing the wiring complexity typically involved in drone and RC setups.

Usage

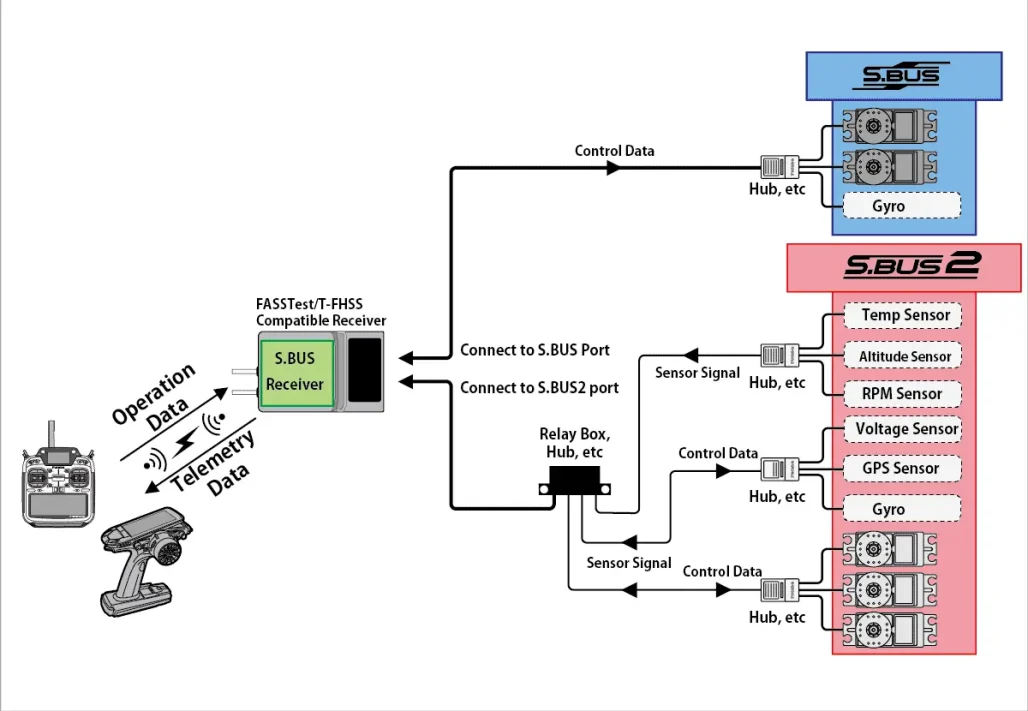

In drone applications, Serial Bus is used to connect the receiver to various flight control components, such as servos, electronic speed controllers (ESCs), and gyroscopes. This protocol allows the flight controller to receive commands from the transmitter (like throttle, yaw, pitch, and roll) and distribute them to the appropriate parts of the drone. S.Bus supports up to 16 channels of data over a single connection, making it highly suitable for drones with multiple control surfaces or complex setups.

Relevance to the Industry

The S.Bus protocol is widely adopted in the drone and RC industries because it simplifies wiring, improves reliability, and reduces the risk of connection issues. Its high-speed data transmission is ideal for drones that require precise and responsive control, especially in applications like racing or aerial photography. By using a single cable for multiple channels, S.Bus minimizes weight and clutter, which is crucial in optimizing drone performance.

How Does S.Bus (Serial Bus) Work?

Signal Transmission and Data Encoding:

1. Digital Signal Encoding:
   • Single-Wire Data Transmission: S.Bus transmits multiple control signals over a single wire using a digital encoding method. Unlike traditional PWM (Pulse Width Modulation) connections, which require separate wires for each channel, S.Bus combines all channel signals into one data stream. This data stream is encoded digitally, allowing it to carry multiple channels of information with higher accuracy and less interference than analog signals.
   • Serial Communication Protocol: S.Bus operates as a serial communication protocol, which means that data is sent sequentially, bit by bit, in a specific format. The protocol uses a standard format where each channel’s control data is converted into a series of digital pulses, which are then transmitted down the wire and decoded by the flight controller or other connected devices.
2. Channel Multiplexing:
   • Combining Multiple Channels: S.Bus can handle up to 16 channels of data on a single line, making it possible to control various aspects of a drone—such as throttle, yaw, pitch, roll, and auxiliary functions like gimbal control—through one connection. The data is multiplexed, meaning that multiple signals are combined into a single data stream, with each channel assigned a specific portion of the data frame.
   • Data Frame Structure: The S.Bus data frame includes a header, channel data, and a checksum. Each channel’s data is represented by a specific segment within the frame, and the checksum ensures that any transmission errors can be detected. This structured approach allows the flight controller to decode the signal accurately and quickly.

Receiving and Decoding the Signal:

3. Flight Controller Interface:
   • Signal Reception: The flight controller receives the S.Bus signal through a dedicated S.Bus port or adapter. Inside the controller, a microprocessor decodes the digital data stream, extracts each channel’s control information, and converts it into commands that control the drone’s motors, servos, or other actuators.
   • Error Detection and Correction: The S.Bus protocol includes error-checking mechanisms to ensure data integrity. If a transmission error is detected, the flight controller can disregard the erroneous data and wait for the next frame, minimizing the risk of unintended control inputs that could destabilize the drone.
4. Conversion to PWM Signals (if needed):
   • Compatibility with PWM Devices: While S.Bus itself is a digital protocol, many flight controllers or devices may still rely on PWM signals. Some S.Bus systems include converters that translate the S.Bus data into PWM signals, enabling compatibility with a wider range of equipment. This conversion allows S.Bus to be used with traditional servos or ESCs that do not support direct S.Bus input.

Integration and Application in Drones:

5. Simplified Wiring Setup:
   • Reducing Cable Clutter: By transmitting all channels over a single wire, S.Bus simplifies the wiring setup in drones, reducing the weight and complexity associated with multiple cables. This streamlined design is especially beneficial for racing drones and other lightweight UAVs, where minimizing weight is essential for performance.
   • Enhanced Reliability: The reduced wiring not only makes assembly easier but also decreases potential points of failure. With fewer connections to worry about, drone operators benefit from a more reliable setup that is less prone to issues such as loose connections or signal degradation.
6. High-Speed Data Transmission:
   • Fast Response Times: S.Bus provides high-speed data transmission, making it ideal for applications where quick response times are crucial, such as in racing drones or drones performing complex maneuvers. The digital nature of S.Bus also ensures minimal latency, which translates to more accurate and responsive control.
   • Multiple Functions over One Connection: For drones equipped with additional functions like camera gimbals, LED lights, or retractable landing gear, S.Bus allows all these functions to be controlled through a single connection. This flexibility makes it possible to add new capabilities without the need for additional wiring or complex setups.

Advanced Features and Compatibility:

7. Compatibility with Futaba and Other Systems:
   • Futaba Equipment: S.Bus was developed by Futaba, so it is commonly found in their receivers, transmitters, and flight controllers. However, many modern flight controllers and receivers from other manufacturers are compatible with S.Bus, making it a versatile option for a variety of drone setups.
   • Integration with Flight Control Systems (FCS): S.Bus can easily integrate with most flight control systems, supporting features like telemetry, GPS, and failsafe options. The protocol’s adaptability allows it to be used in various drone applications, from basic recreational drones to advanced commercial UAVs.
8. Support for Advanced Drone Features:
   • Telemetry and Feedback: S.Bus systems can also support telemetry functions, providing real-time feedback to the operator about the drone’s status, such as battery level, GPS location, or signal strength. This added layer of communication enhances situational awareness and helps operators make informed decisions during flight.
   • Failsafe and Redundancy: Many S.Bus-equipped systems offer failsafe options, which enable the drone to return to a safe mode or predefined action if it loses connection with the controller. These features are essential for ensuring safety, especially in high-stakes applications like commercial drone deliveries or inspections.

By transmitting multiple control signals over a single connection, the Serial Bus protocol simplifies drone setups, enhances reliability, and enables high-speed, precise control for both basic and advanced drone operations.

Example in Use

“The drone’s flight controller was connected to the receiver using S.Bus, allowing for a streamlined setup that reduced the need for multiple cables and provided fast, reliable control input.”

Frequently Asked Questions about S.Bus (Serial Bus)

1. What are the benefits of using S.Bus in drones?

Answer: The benefits of Serial Bus include:

• Reduced Wiring: S.Bus transmits multiple channels over a single wire, reducing the amount of cabling required and simplifying the setup.
• High-Speed Data Transmission: It provides fast and reliable communication between the receiver and flight controller, crucial for responsive drone control.
• Compatibility with Multiple Channels: S.Bus can support up to 16 channels, accommodating complex drone setups with multiple control functions.

2. How does S.Bus differ from traditional PWM connections?

Answer: Serial Bus differs from PWM by:

• Using a Single Cable: While PWM requires separate cables for each channel, S.Bus transmits all channels over one wire, which is more efficient and reduces weight.
• Digital Data Transmission: S.Bus uses digital signals, which provide more accurate and interference-resistant control compared to the analog signals used in PWM.

3. What types of drones commonly use S.Bus?

Answer: Serial Bus is commonly used in:

• Racing Drones: Where reduced wiring and high-speed communication are essential for quick response times.
• Aerial Photography Drones: Which benefit from simplified wiring to minimize weight and allow for multiple control functions, such as gimbal and camera control.
