CDMA (Code Division Multiple Access)

Definition

CDMA stands for Code Division Multiple Access, a channel access method used in communication systems where multiple signals are transmitted over the same frequency channel. CDMA allows several devices to share the same bandwidth by assigning a unique code to each signal. This technique spreads the signal across the frequency spectrum, and the receiver uses the unique code to extract the original signal, distinguishing it from others. CDMA is used in mobile communication, GPS, and certain types of drone communication systems for secure and efficient data transmission.

Usage

CDMA is commonly used in mobile phone networks (such as 3G), allowing multiple users to communicate over the same frequency band without interference. In drone systems, CDMA can be employed to allow multiple drones to operate simultaneously in the same frequency range without their signals overlapping, enabling stable communication. CDMA systems use spread spectrum techniques, making them resistant to interference and providing enhanced security, as unauthorized receivers cannot easily decode the signals without knowing the assigned code.

Relevance to the Industry

In the drone industry, CDMA is relevant because it allows multiple drones to share the same frequency band while minimizing interference. It enhances the system’s ability to handle simultaneous communication streams, particularly in crowded environments. CDMA’s ability to encode each transmission with a unique code makes it highly secure, helping ensure that only intended recipients can access the communication data.

How Does Code Division Multiple Access (CDMA) Work?

Signal Encoding and Spreading:

1. Assigning Unique Codes:
   • Unique Code Assignment: In CDMA, each transmitter (such as a mobile phone or drone) is assigned a unique pseudorandom noise (PN) code that is used to spread its signal across the available frequency spectrum. This code is known only to the transmitter and the receiver, ensuring that even though multiple signals share the same frequency band, they can be distinguished from one another by their unique codes. The signal is multiplied by the PN code to create a wideband signal that occupies the entire frequency spectrum.
   • Spreading the Signal: The PN code spreads the original narrowband data signal into a wider bandwidth. This process involves modulating the signal by multiplying it with the unique code at a high rate, resulting in a signal that appears as low-power noise to other receivers. This is a form of spread spectrum communication, which increases the system’s resistance to interference and jamming.
2. Orthogonal Signal Transmission:

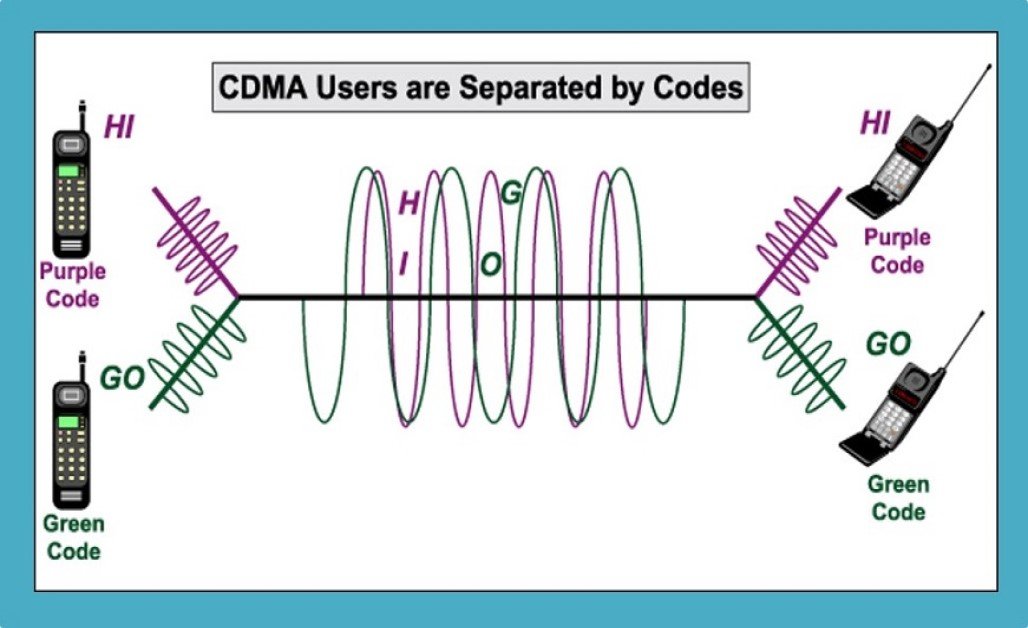

   • Simultaneous Use of Frequency Band: CDMA allows multiple users to transmit over the same frequency band simultaneously because the signals are separated by their unique codes, not by frequency or time. This makes CDMA highly efficient in utilizing the available bandwidth, allowing more devices to operate simultaneously compared to other systems like Frequency Division Multiple Access (FDMA) or Time Division Multiple Access (TDMA).
   • Orthogonality: The codes used in CDMA are designed to be orthogonal to each other, meaning that when they are decoded at the receiver, there is minimal interference between different signals. This allows multiple signals to coexist within the same frequency band without causing significant degradation to each other’s performance.

Decoding at the Receiver:

3. Signal Decoding and Correlation:
   • Despreading the Signal: At the receiving end, the same PN code that was used to spread the signal is applied to “despread” it, converting the wideband signal back into its original narrowband form. The receiver uses a correlation process to extract the desired signal while treating all other signals as noise. This process ensures that the receiver can filter out any unwanted signals that are not associated with the correct PN code.
   • Low-Cross Correlation: The codes in CDMA systems have low cross-correlation, meaning that the signals from other transmitters do not interfere with the signal of interest. This helps maintain the integrity of the communication, even when many users share the same frequency band.
4. Interference Resistance and Signal Clarity:
   • Interference Rejection: One of the key benefits of CDMA is its ability to resist interference and multipath fading. Since each signal is spread across a wide frequency range and modulated with a unique code, the system can reject interference and noise that does not match the desired signal’s code. This makes CDMA well-suited for environments with significant RF interference or where multiple devices are operating simultaneously.
   • Multipath Resistance: In environments where signals may reflect off surfaces and take multiple paths to reach the receiver (multipath interference), CDMA’s despreading process helps filter out these delayed signals, improving the clarity and reliability of communication.

Applications and Benefits of CDMA:

5. Efficient Use of Spectrum:
   • High Capacity: CDMA allows many users to share the same frequency band without causing significant interference to each other. This makes it highly efficient for mobile phone networks, satellite communication, and drone systems where bandwidth is limited but multiple devices need to communicate at the same time.
   • Increased System Capacity: The system’s ability to support more simultaneous users makes CDMA ideal for communication networks that require high capacity. This is particularly important in drone operations where multiple UAVs might be controlled in close proximity, such as in industrial inspections, surveillance, or disaster response missions.
6. Enhanced Security and Privacy:
   • Code-Based Security: Because each user’s signal is encoded with a unique PN code, it is difficult for unauthorized receivers to intercept or decode the communication without knowing the code. This provides a layer of security, ensuring that only the intended receiver can correctly interpret the transmitted signal. CDMA’s built-in security makes it a good fit for sensitive applications like military drone operations and encrypted communication systems.
7. Adaptability to Variable Traffic:
   • Flexible Traffic Handling: CDMA is well-suited for handling variable traffic loads, such as in mobile networks where users may have fluctuating data requirements. This flexibility allows it to efficiently manage both voice and data traffic, ensuring smooth communication even when multiple users are active. In drone systems, this adaptability ensures that control signals, video feeds, and telemetry data can be transmitted efficiently, even under heavy network loads.

By spreading signals across a wide frequency range and assigning each user a unique code, CDMA allows multiple users to share the same frequency band with minimal interference, providing high capacity, secure, and interference-resistant communication for mobile networks, GPS, and drone systems.

Example in Use

“The drone communication system uses CDMA technology to allow multiple UAVs to operate in the same frequency band without signal interference, ensuring smooth operation during coordinated missions.”

Frequently Asked Questions about CDMA (Code Division Multiple Access)

1. How does CDMA work?

Answer: CDMA works by:

• Assigning Unique Codes: Each signal is assigned a unique pseudorandom code, which is used to spread the signal across the available frequency spectrum.
• Decoding at the Receiver: The receiver, using the same code, can decode the signal, distinguishing it from other signals sharing the same frequency.

2. What are the advantages of CDMA?

Answer: CDMA provides several advantages, including:

• Efficient Use of Bandwidth: Multiple users can share the same frequency band, which maximizes the available bandwidth.
• Resistance to Interference: CDMA’s spread spectrum technology helps reduce the impact of interference and noise, ensuring reliable communication.
• Enhanced Security: Since each communication stream uses a unique code, unauthorized users cannot easily intercept or decode the signal.

3. Where is CDMA commonly used?

Answer: CDMA is used in:

• Mobile Networks: It was a key technology in 3G networks, allowing multiple users to share the same frequency spectrum.
• GPS Systems: CDMA is used to distinguish between signals from multiple satellites, enabling accurate positioning.
• Drone Communication Systems: CDMA can be used to allow multiple drones to operate in the same area without signal interference.
