Drone Communication Systems: How Drones Communicate with Controllers and Other Systems

Drones, or Unmanned Aerial Vehicles (UAVs), have rapidly evolved from niche gadgets to essential tools across various industries. Their applications range from recreational photography to complex tasks like search and rescue, agricultural monitoring, and package delivery. At the heart of every operation lies drone communication systems—a sophisticated network of technologies that enables these devices to be controlled, monitored, and interact with other systems.

Why Drone Communication Systems Are Crucial

The communication system of a drone is fundamental to its functionality. It ensures that operators can reliably control the drone’s movements, adjust its altitude, and make real-time changes to its course. Beyond basic control, these systems also allow for transmitting critical data, such as GPS coordinates, telemetry, and video feeds, which are essential for effective operation and mission success.

Drone communication systems are responsible for maintaining three primary functions:

1. Control and Command: This is the basic communication that allows the operator to pilot the drone. Without it, manual control over the drone would be impossible, rendering it unusable for most practical applications.
2. Telemetry and Monitoring: Drones need to send data back to the controller or a ground station about their current status, such as battery level, altitude, and speed. This data enables the operator to make informed decisions and ensures the drone operates within safe parameters.
3. Data Transmission: Many drones are equipped with sensors or cameras that gather data during flight. The communication system enables this data to be transmitted to the operator or other systems in real-time. This is particularly critical for applications like aerial surveillance, mapping, and inspection, where real-time data analysis is necessary.

The Growing Complexity of Drone Communication Systems

As drones become more sophisticated, so do drone communication systems. Modern drones often support multiple frequencies, advanced encryption protocols, and adaptive modulation techniques to maintain robust and secure communication links. The need for uninterrupted control and data exchange becomes even more crucial with the increasing use of drones in high-stakes environments, such as military operations and industrial inspections.

In addition to basic remote control, many drones now include autonomous features, such as obstacle detection and avoidance, which require constant data exchange with the onboard systems. Additionally, advances in swarm technology allow multiple drones to communicate with each other, coordinating movements to perform tasks collectively.

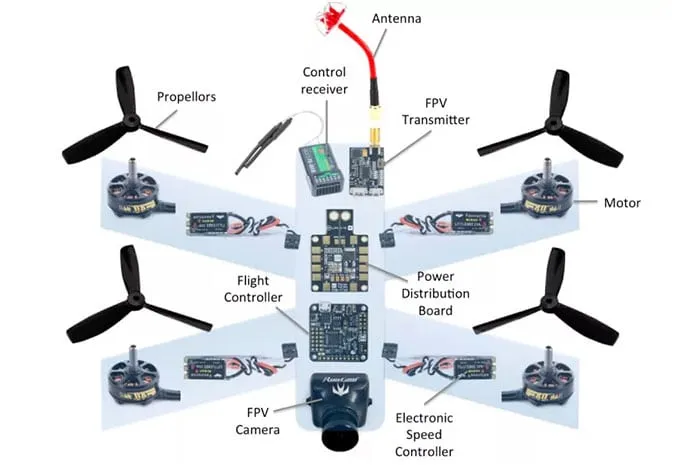

Primary Components of Drone Communication Systems

1. Controller: The controller, often referred to as the remote or transmitter, is the main interface between the drone and its operator. It allows the pilot to issue commands, control flight movements, and monitor the drone’s status. Controllers typically feature joysticks for directional control, along with various buttons or switches to manage specific functions, like camera operation or return-to-home features. Controllers are also equipped with transmitters that send signals to the drone’s onboard receiver. These signals instruct the drone on basic maneuvers such as altitude adjustment, turning, and speed control. Advanced controllers may incorporate touch screens, providing real-time telemetry and video feed from the drone, which enhances situational awareness and decision-making.
2. Transceiver: The transceiver, or transmitter-receiver module, is crucial for maintaining two-way communication between the drone and the controller. It is responsible for sending signals to the drone while receiving feedback signals back to the controller. This exchange of information occurs continuously, enabling real-time control and status updates. Transceivers in modern drones are designed to operate on multiple frequencies, often switching automatically to reduce interference and maintain a stable connection. They are also responsible for handling data transfer protocols, such as those used for telemetry, which provides detailed information about the drone’s position, speed, and other key metrics.
3. Antenna: Antennas are integral to both the controller and the drone. They transmit and receive radio signals, which facilitate the communication link. Most drones and controllers are equipped with omnidirectional antennas, which can receive signals from all directions, allowing for flexible movement and positioning. There are different types of antennas used in drones, each with specific benefits:
   • • Omnidirectional Antennas: Provide 360-degree coverage and are commonly used in consumer drones.
     • Directional Antennas: Focus the signal in a specific direction, which can extend range and reduce interference. These are often used in professional or industrial drones that need to maintain a stable connection over long distances.
     • Patch Antennas: Used for high-gain and directional signals, which are ideal for applications like FPV (First-Person View) racing, where real-time video feed is crucial.



4. Onboard Flight Control System (FCS): The Flight Control System (FCS) is the “brain” of the drone. It processes inputs from the controller, interprets these commands, and adjusts the drone’s movements accordingly. The FCS is responsible for maintaining flight stability by adjusting the drone’s motors and propellers based on sensor inputs, such as accelerometers and gyroscopes. The FCS also communicates with other onboard systems, such as GPS and sensors, to ensure accurate navigation and responsiveness. In advanced drones, the FCS may integrate with artificial intelligence algorithms that allow for features like obstacle avoidance, path planning, and autonomous flight.
5. GPS and Positioning Systems: Many drones are equipped with Global Positioning System (GPS) modules to assist with navigation and stabilization. GPS allows the drone to determine its exact location, altitude, and speed, which is essential for accurate flight control, especially in autonomous or waypoint-based missions. In addition to GPS, drones may utilize other positioning systems such as GLONASS (Global Navigation Satellite System) or local positioning technologies like RTK (Real-Time Kinematic) for improved accuracy in environments where GPS signals may be weak.
6. Telemetry Systems: Telemetry systems continuously transmit critical data from the drone to the controller, including altitude, speed, battery status, and GPS coordinates. This data is vital for the operator to monitor the drone’s performance and make informed decisions during flight. Telemetry data also provides insights into environmental factors that could affect flight, such as wind speed and temperature. For professional drones, telemetry is often linked with other systems like ground control stations, where the data can be analyzed in real-time for tasks like surveying, mapping, or search and rescue operations.
7. Data Link Systems: Data links are essential for transmitting additional data, such as live video feeds or sensor data, to the ground control station or operator. They operate on different frequencies from those used for control and telemetry to prevent interference. High-end drones may use data link systems that operate on 5.8 GHz or even specialized bands for uninterrupted video streaming. Data link systems often incorporate compression technologies to reduce bandwidth requirements while maintaining data quality, which is crucial for applications that involve high-definition video or large data files.

How These Components Work Together

These core components function as a cohesive system that enables drones to execute complex tasks with high precision and reliability. The controller sends commands, which are received by the transceiver and processed by the onboard flight control system. Antennas ensure that signals are effectively transmitted and received, while telemetry systems continuously relay data back to the operator.

For more advanced drones, GPS and data link systems play crucial roles, especially when performing autonomous missions or transmitting real-time video. By leveraging these interconnected components, drones can maintain stable flight, adapt to environmental changes, and complete their designated tasks efficiently.

Protocols in Drone Communication Systems

Communication protocols are the set of rules and standards that define how data is transmitted and received between devices. In drone systems, these protocols play a critical role in ensuring that information sent from the controller reaches the drone accurately and promptly. Different protocols are optimized for specific types of data, such as control commands, telemetry data, and video feeds, making them essential for reliable and efficient drone operation.

Overview of Communication Protocols Used in Drones

Drone communication relies on various protocols that serve distinct functions within the system. The choice of protocol depends on factors like the type of drone, its application, and the level of control or data transmission required. Here are some of the most commonly used protocols:

MAVLink (Micro Air Vehicle Link): MAVLink is one of the most widely adopted communication protocols in the drone industry, especially among commercial and professional drones. It is an open-source protocol designed to facilitate communication between drones and ground control stations or between drones themselves in swarm operations. MAVLink supports telemetry data exchange, mission control, and video streaming.

• • Bi-Directional Communication: Supports two-way data transfer, allowing for command transmission and real-time feedback.
  • Message Types: Includes predefined message types for telemetry, GPS, sensor data, and control commands, enabling comprehensive monitoring and control.
  • Lightweight and Efficient: Consumes minimal bandwidth, making it suitable for drones operating in environments with limited connectivity.

DSMX (Digital Spectrum Modulation): DSMX is a proprietary protocol developed by Spektrum, commonly used in hobbyist and recreational drones. It operates on the 2.4 GHz frequency and employs frequency-hopping technology to reduce interference, ensuring stable and reliable communication. DSMX is valued for its quick response times and secure connection, making it ideal for applications that demand real-time control.

• • Frequency-Hopping: Continuously shifts frequencies to minimize interference from other devices.
  • Backward Compatibility: Compatible with DSM2, an earlier version of the protocol, providing flexibility for users with older devices.
  • Low Latency: Offers rapid response times, which are crucial for FPV (First Person View) racing drones and other high-speed applications.

S.Bus (Serial Bus): S.Bus, developed by Futaba, is another protocol that is widely used in drones, especially in systems that require complex control setups. S.Bus allows for multiple channels to be transmitted over a single signal line, reducing wiring complexity and improving signal quality. It is frequently used in conjunction with other protocols, like MAVLink, to handle additional data requirements in advanced drones.

• • High Channel Count: Capable of handling up to 18 channels, which is beneficial for drones with numerous control surfaces or accessories.
  • Simplified Wiring: Reduces the number of physical connections required, which enhances reliability and simplifies maintenance.
  • Compatibility: Compatible with other control systems and can be integrated into complex setups involving multiple control units.

Lightbridge and Ocusync (by DJI): These are proprietary protocols developed by DJI, specifically optimized for high-definition video transmission and long-range communication. Lightbridge and Ocusync are designed to offer low latency, high bandwidth, and long-range capabilities, which are essential for professional drones used in cinematography, inspection, and other demanding applications.

• • High-Definition Video: Capable of transmitting 1080p video over several kilometers, making it suitable for real-time video applications.
  • Adaptive Frequency Hopping: Automatically switches between frequencies to avoid interference and maintain a stable connection.
  • Low Latency: Ensures minimal delay in video and control signals, enhancing the user experience in applications like FPV and live-streaming.

Zigbee and Wi-Fi-Based Protocols: Zigbee and Wi-Fi are less common in drones but are used for specialized applications where low-cost and short-range communication is sufficient. These protocols are typically found in consumer drones or drones designed for indoor use, as they offer sufficient bandwidth for control and basic telemetry within limited distances.

• • Cost-Effective: Provides affordable connectivity solutions for consumer drones or entry-level applications.
  • Ease of Integration: Commonly used in smart devices, making it easy to integrate with other smart home technologies and mobile devices.
  • Short Range: Best suited for indoor or close-range applications, as Wi-Fi and Zigbee do not offer the same range and robustness as protocols like MAVLink or Ocusync.

Selecting the Right Protocol

The choice of protocol depends heavily on the specific needs of the drone and its intended application. For instance:

• Recreational Drones: Typically use DSMX or Wi-Fi-based protocols due to their simplicity and cost-effectiveness.
• Professional and Industrial Drones: Favor MAVLink or DJI’s proprietary protocols like Ocusync, which support more complex data and video requirements.
• Autonomous Drones and Swarm Drones: Rely on MAVLink or custom protocols that enable multiple drones to coordinate actions and share data in real time.

Interoperability and Protocol Integration

As drones become more complex, there is often a need to integrate multiple protocols to handle various aspects of communication. For example, a drone may use MAVLink for telemetry, S.Bus for control surfaces, and Lightbridge for video transmission. Ensuring these protocols work seamlessly together is essential for maintaining a reliable and responsive communication system.

Manufacturers often provide compatibility solutions and bridges to enable interoperability among different protocols, allowing users to customize their systems according to operational needs. As a result, drones can achieve greater flexibility and resilience, adapting to a wide range of environments and tasks.

Radio frequencies are the backbone of drone communication systems, enabling the transmission of signals between the drone and its controller, as well as other systems. The choice of frequency directly affects the range, data transmission speed, and susceptibility to interference. Different frequencies have distinct characteristics, making them more or less suitable for specific drone applications.

Common Radio Frequencies for Drones

2.4 GHz Frequency Band

The 2.4 GHz frequency is the most widely used band for consumer and commercial drones. It strikes a balance between range and data transmission quality, making it suitable for general drone applications, including recreational use and professional operations such as photography and mapping.

Advantages of 2.4 GHz:

• • Penetration Power: This frequency band is capable of penetrating obstacles like trees and walls better than higher frequencies, providing a more reliable connection in environments with obstructions.
  • Sufficient Range: Generally provides a range of up to several kilometers in open spaces, making it adequate for most consumer and professional drone flights.
  • Compatibility: 2.4 GHz is a globally accepted frequency band, making it compatible with a wide range of devices and legal to use in many countries.

Limitations of 2.4 GHz:

• • • Susceptibility to Interference: Since many household devices, such as Wi-Fi routers, Bluetooth devices, and microwaves, also operate on 2.4 GHz, this band can be prone to interference, which may disrupt communication.
    • Congestion: Due to its popularity, the 2.4 GHz band can become congested, especially in urban areas where many devices compete for the same frequency.

5.8 GHz Frequency Band

The 5.8 GHz frequency is commonly used in drones for high-definition video transmission, especially in FPV (First-Person View) systems. It offers a higher data transmission rate than 2.4 GHz, making it ideal for applications requiring large bandwidth.

Advantages of 5.8 GHz:

• • High Bandwidth: Supports faster data transmission rates, allowing for the real-time streaming of high-definition video without significant delay.
  • Reduced Interference: The 5.8 GHz band is less crowded than the 2.4 GHz band, resulting in fewer issues with interference from common household devices.
  • Shorter Range: While this could be seen as a disadvantage for general flight, it is an advantage for close-range applications like FPV racing, where quick response times are more important than long-distance capabilities.

Limitations of 5.8 GHz:

• • Lower Penetration Ability: The higher frequency does not penetrate obstacles as effectively as 2.4 GHz, making it more susceptible to signal loss when there are obstructions between the drone and the controller.
  • Limited Range: Generally offers a shorter operational range compared to 2.4 GHz, making it less suitable for long-distance flights or applications where the drone needs to cover expansive areas.

900 MHz Frequency Band

The 900 MHz band is less commonly used but is valuable for drones operating in environments with heavy interference or where a greater range is needed. It is often used in agricultural drones, where wide coverage is essential.

Advantages of 900 MHz:

• • Excellent Penetration: 900 MHz signals penetrate obstacles very well, making it ideal for flights in dense environments like forests or hilly terrain.
  • Extended Range: This band can provide a range of several kilometers, suitable for applications that require extensive coverage, such as surveying large agricultural fields.

Limitations of 900 MHz:

• • Lower Data Rates: The 900 MHz band generally has a lower data transmission rate compared to 2.4 GHz and 5.8 GHz, making it less suitable for high-definition video streaming.
  • Availability and Licensing: In some regions, the 900 MHz band is restricted or regulated, requiring special licenses for use.

1.2 GHz and 1.3 GHz Bands

These bands are sometimes used in professional and custom-built drones for long-range communication, particularly when the drone operates in rural or remote areas. They offer a good compromise between range and data speed.

Advantages of 1.2 GHz and 1.3 GHz:

• • Long Range: These frequencies can provide extended range, making them suitable for applications like search and rescue or surveying over vast areas.
  • Moderate Penetration Ability: They have better penetration through obstacles compared to 5.8 GHz but are not as effective as 900 MHz in dense environments.

Limitations of 1.2 GHz and 1.3 GHz:

• • Interference with Other Devices: These bands can sometimes interfere with other communications systems, especially in urban areas where multiple signals overlap.
  • Regulatory Restrictions: In certain countries, these frequencies are subject to strict regulations or require special permits, limiting their accessibility for non-commercial users.

433 MHz Frequency Band

The 433 MHz band is typically used in specialized applications, such as telemetry data transmission for long-range drones. It is not commonly found in consumer drones but is valuable in custom UAV systems.

Advantages of 433 MHz:

• • Strong Penetration: This frequency offers excellent penetration through obstacles, making it useful in challenging environments.
  • Extended Range: Capable of very long-range communication, suitable for applications where the drone needs to travel beyond visual line of sight (BVLOS).

Limitations of 433 MHz:

• • Limited Data Capacity: It has a lower data rate, which restricts its use for applications requiring large data transfers, such as video transmission.
  • Regulatory Constraints: The 433 MHz band is not universally available for public use and often requires special permissions, especially for high-power applications.

Factors Influencing Frequency Choice

Choosing the appropriate frequency for a drone depends on several factors:

• Range Requirements: Lower frequencies like 433 MHz and 900 MHz are preferred for long-range applications, while higher frequencies like 5.8 GHz are ideal for close-range, high-bandwidth tasks.
• Environmental Conditions: Drones operating in dense or urban areas may benefit from frequencies with better penetration abilities, such as 2.4 GHz or 900 MHz.
• Data Transmission Needs: For video or data-intensive applications, higher frequencies like 5.8 GHz are optimal due to their bandwidth capabilities, despite their limited range.

Adaptive Frequency Selection and Dual-Frequency Systems

To address the limitations of individual frequencies, many advanced drones incorporate adaptive frequency selection or dual-frequency systems. Adaptive systems can automatically switch frequencies based on real-time conditions, reducing the impact of interference and optimizing signal quality. Dual-frequency systems allow drones to simultaneously utilize multiple frequencies, such as 2.4 GHz for control and 5.8 GHz for video, ensuring that each function operates on the most suitable frequency band.

Types of Signal Modulation Techniques in Drone Communication

Frequency Modulation (FM)

Frequency Modulation (FM) is a widely used technique where the frequency of the carrier signal is varied in proportion to the data being transmitted. This method is commonly used in radio communication and is valued for its resistance to signal degradation and noise.

Advantages of FM in Drones:

• • Noise Resistance: FM signals are less susceptible to noise and interference compared to Amplitude Modulation (AM), making them suitable for environments with moderate interference.
  • Reliability: Provides a stable connection over shorter ranges, which is adequate for most consumer drones.
  • Audio Applications: FM is often used for transmitting audio signals, which is beneficial in drones equipped with speakers or audio capabilities.

Limitations of FM:

• • Bandwidth Requirements: FM requires a broader bandwidth compared to AM, which can limit its application in environments where spectrum availability is constrained.
  • Shorter Range: While it is reliable over short to medium distances, FM is not typically used for long-range drone communication due to its limited range.

Amplitude Modulation (AM)

In Amplitude Modulation (AM), the amplitude, or strength, of the carrier wave is varied in proportion to the information signal. While AM is not as commonly used in modern drones due to its susceptibility to noise, it remains a foundational modulation technique in radio communication.

Advantages of AM in Drones:

• • Simplicity: AM is a straightforward modulation technique, making it easy to implement and decode.
  • Long-Range Potential: AM can be used over longer distances compared to FM when interference is minimal.

Limitations of AM:

• • High Susceptibility to Noise: AM signals are more prone to interference from electrical devices and environmental noise, which can result in a loss of data fidelity.
  • Lower Bandwidth Efficiency: AM is not as bandwidth-efficient as other modulation techniques, limiting its use in drones that require fast data transmission rates.

Phase Modulation (PM)

Phase Modulation (PM) involves varying the phase of the carrier wave to encode information. PM is closely related to Frequency Modulation and is often used in combination with FM as Phase-Shift Keying (PSK).

Advantages of PM in Drones:

• • Resistance to Interference: PM offers better noise immunity compared to AM, making it more reliable in environments with moderate interference.
  • High Data Rates: Capable of supporting higher data rates, which is beneficial for transmitting complex data types like telemetry and control commands.

Limitations of PM:

• • Complexity: PM requires more complex circuitry and processing power to implement, which can increase the cost and power requirements of the drone.
  • Limited Range: PM is generally not used for long-range applications, as it can be affected by phase distortion over distance.

Pulse Width Modulation (PWM)

Pulse Width Modulation (PWM) is a technique where the width of the pulses in a signal is varied to represent data. PWM is widely used in drones, particularly for controlling motor speeds and servos, as well as for transmitting basic control signals.

Advantages of PWM in Drones:

• • Precision Control: PWM allows for precise control over motors and actuators, which is essential for maneuvering and stability in drones.
  • Low Power Consumption: PWM signals can be generated with low power, which helps conserve the drone’s battery life.
  • Simplicity: PWM is straightforward to implement and does not require extensive processing power, making it ideal for small, lightweight drones.

Limitations of PWM:

• • Limited Data Capacity: PWM is not suitable for transmitting large amounts of data or high-frequency signals, restricting its use to control signals rather than data transmission.
  • Susceptible to Noise: While generally reliable, PWM can be affected by electrical noise, which can impact the precision of the control signals.

Spread Spectrum Modulation

Spread Spectrum Modulation is an advanced technique that spreads the signal across a wide frequency band. This technique includes variations like Frequency Hopping Spread Spectrum (FHSS) and Direct Sequence Spread Spectrum (DSSS), both of which are commonly used in drone communication to enhance signal robustness and security.

Frequency Hopping Spread Spectrum (FHSS)

 FHSS rapidly switches the carrier frequency among various frequencies within a larger bandwidth. This hopping sequence is known to both the transmitter and receiver, which hop in sync to maintain communication.

Advantages of FHSS:

• • • High Resistance to Interference: Since the signal constantly changes frequencies, it is less likely to suffer from interference.
    • Enhanced Security: FHSS makes it difficult for unauthorized users to intercept the signal, as they would need to know the hopping sequence to decode the data.

Limitations of FHSS:

• • • Lower Data Rates: FHSS can limit data throughput, making it less suitable for high-data applications like video streaming.

Direct Sequence Spread Spectrum (DSSS)

 DSSS spreads the data signal across a wide band of frequencies by encoding it with a pseudo-random sequence, which helps reduce interference and increase robustness.

Advantages of DSSS:

• • • Interference Resistance: DSSS is effective at reducing interference from narrowband sources, as the signal can be reconstructed even if part of it is lost.
    • Better Bandwidth Efficiency: DSSS allows for higher data rates compared to FHSS, making it more suitable for telemetry and control data.

Limitations of DSSS:

• • • Complexity and Cost: Implementing DSSS requires more processing power and complex circuitry, increasing the overall cost and power consumption.

Orthogonal Frequency Division Multiplexing (OFDM)

OFDM is a sophisticated modulation technique that splits the signal into multiple sub-signals and transmits them at different frequencies simultaneously. This technique is commonly used in high-performance drones, particularly for long-range communication and video transmission.

Advantages of OFDM in Drones:

• • High Data Rates: OFDM supports fast data transmission, making it ideal for high-definition video streaming and other data-intensive applications.
  • Interference Resistance: By dividing the signal across multiple frequencies, OFDM can maintain signal quality even in noisy environments.
  • Efficient Bandwidth Utilization: OFDM makes efficient use of the available bandwidth, maximizing data throughput without compromising quality.

Limitations of OFDM:

• • High Power Consumption: The processing requirements for OFDM can drain the drone’s battery more quickly, limiting flight time.
  • Complexity: OFDM requires advanced signal processing capabilities, which can increase the cost and size of the drone’s communication system.

Choosing the Right Modulation Technique

The choice of modulation technique depends on the specific requirements of the drone and its intended application. For example:

• Short-Range Consumer Drones: Typically use simpler modulation techniques like FM and PWM for basic control and operation.
• High-Speed and FPV Drones: Rely on Spread Spectrum Modulation (FHSS or DSSS) for reliable, interference-resistant communication in crowded environments.
• Professional Drones for Video and Data Transmission: Often use OFDM or DSSS to ensure high data rates and robustness, essential for real-time video streaming and data-intensive tasks.

Adaptive Modulation in Drones

Some advanced drone systems incorporate adaptive modulation, where the modulation technique changes in response to real-time conditions. For instance, if interference is detected, the system may switch from FM to Spread Spectrum to maintain a stable connection. This adaptability enhances the drone’s resilience and ensures optimal performance in varying operational environments.

Impact of Interference on Drone Communication Systems

Interference is one of the most significant challenges in drone communication systems. It can disrupt the signal between the drone and its controller, leading to issues like delayed responses, signal loss, or even complete disconnection. Understanding the sources and impacts of interference is essential for optimizing drone performance and ensuring safe operation.

Types of Interference in Drone Communication

Electromagnetic Interference (EMI)

Electromagnetic interference occurs when external electromagnetic fields disrupt the radio frequencies that drones use for communication. EMI is common in urban areas with dense concentrations of electronic devices and infrastructure.

Sources of EMI:

• • Power Lines: High-voltage power lines emit electromagnetic fields that can interfere with drone frequencies, particularly in the 2.4 GHz band.
  • Transformers and Generators: Industrial areas with large transformers and generators can create electromagnetic fields that disrupt drone signals.
  • Radar Systems: Radar systems, particularly those used near airports and military installations, can interfere with drones, as they often operate on similar frequencies.

Impact of EMI:

• • Signal Degradation: EMI can weaken the signal, reducing the drone’s operational range and potentially causing delayed responses.
  • Loss of Control: Severe EMI can lead to temporary loss of control, as the interference may overpower the signals between the controller and the drone.

Radio Frequency Interference (RFI)

Radio Frequency Interference (RFI) is caused by other devices operating on similar radio frequencies. With so many consumer and industrial devices using the 2.4 GHz and 5.8 GHz bands, RFI is a common problem for drones.

Sources of RFI:

• • Wi-Fi Networks: Wi-Fi routers, especially in crowded urban areas, operate on the 2.4 GHz and 5 GHz bands, leading to congestion and interference.
  • Bluetooth Devices: Bluetooth also operates on the 2.4 GHz band, potentially creating interference with drones that use the same frequency.
  • Microwave Ovens: Microwave ovens emit signals around the 2.4 GHz band, which can cause temporary interference when drones fly near residential areas.

Impact of RFI:

• • Increased Latency: RFI can slow down data transmission, leading to delayed responses in the drone’s movement and real-time data streaming.
  • Reduced Range: The effective communication range can decrease due to RFI, as the signal strength is reduced by competing devices.
  • Signal Loss: In extreme cases, RFI can completely block signals, resulting in temporary or permanent loss of communication.

Physical Obstructions

Physical objects can also interfere with radio signals by absorbing, reflecting, or scattering them. This type of interference is more pronounced at higher frequencies, such as 5.8 GHz, which do not penetrate obstacles as well as lower frequencies.

Common Physical Obstructions:

• • Buildings and Walls: Dense materials like concrete, metal, and brick can significantly weaken or block signals.
  • Vegetation: Trees and dense foliage can absorb or reflect signals, especially when the drone is flying close to the ground or in forested areas.
  • Terrain: Hills, mountains, and other geographical features can obstruct the line of sight, causing signals to weaken or be completely blocked.

Impact of Physical Obstructions:

• • Signal Attenuation: Signals weaken as they pass through obstacles, which can reduce the effective range and increase the likelihood of disconnection.
  • Signal Reflection and Multipath Effects: Signals may reflect off surfaces like buildings, creating multiple paths where the signal travels. This can result in multipath interference, where delayed signals arrive at the receiver at different times, causing data errors.

Weather Conditions

Weather can also impact drone communication, particularly at higher frequencies. While most drones are designed to operate in a variety of weather conditions, extreme weather can cause significant interference.

Weather-Related Interference:

• • Rain and Humidity: High humidity and rain can absorb radio frequencies, especially higher frequencies like 5.8 GHz, reducing signal strength and range.
  • Fog and Clouds: Water particles in fog and clouds can scatter signals, especially when using high-frequency bands for video transmission.
  • Wind and Turbulence: While wind does not directly interfere with radio frequencies, it can impact the stability of the drone, which indirectly affects communication quality.

Impact of Weather on Communication:

• • Signal Loss: Heavy rain or fog can significantly reduce the range and reliability of communication, leading to intermittent or complete signal loss.
  • Data Corruption: Increased scattering and attenuation can lead to data errors, impacting the quality of real-time video and telemetry.

Consequences of Interference in Drone Communication

1. Reduced Operational Range Interference can substantially reduce the effective range of a drone’s communication system. When interference is present, the controller may lose contact with the drone at shorter distances than expected. This can be problematic for applications that require long-range operations, such as surveying, mapping, or search and rescue missions.
2. Loss of Real-Time Control Effective communication is essential for real-time control, especially in applications like FPV racing or industrial inspections. Interference can introduce latency or even cause temporary signal loss, which reduces responsiveness and makes it challenging to control the drone accurately.
3. Compromised Data Quality Interference can also impact the quality of data transmission, which is critical for applications requiring real-time video feeds or telemetry. Video feeds may become pixelated or freeze, and telemetry data may be incomplete or inaccurate, affecting the operator’s ability to make informed decisions.
4. Increased Risk of Accidents In extreme cases, severe interference can result in a complete communication breakdown, leading to crashes or fly away’s. Drones may automatically enter a failsafe mode, such as a return-to-home (RTH) function when they lose contact with the controller. However, if interference prevents the failsafe signal from reaching the drone, it could drift or crash, posing risks to safety and property.

Mitigating Interference in Drone Communication

1. Frequency Selection and Diversity Choosing the right frequency can help minimize interference. For example, if the 2.4 GHz band is congested, using a 5.8 GHz channel can provide a clearer signal. Many drones also feature dual-frequency systems, allowing them to switch between frequencies to avoid interference dynamically.
2. Using Spread Spectrum Techniques Spread Spectrum Modulation techniques, such as FHSS (Frequency Hopping Spread Spectrum) and DS (Direct Sequence Spread Spectrum), help reduce interference by spreading the signal across multiple frequencies or switching frequencies in a pseudorandom pattern. This makes it more challenging for interference to disrupt the signal entirely.
3. Line of Sight and Optimal Positioning Maintaining a clear line of sight between the controller and the drone can reduce the effects of physical obstructions. Positioning the controller in an elevated or unobstructed location can help maintain a stronger, more reliable signal.
4. Signal Boosters and Amplifiers For applications where interference is a significant concern, signal boosters or amplifiers can help increase the range and strength of the signal. These devices amplify the output signal from the controller, making it less susceptible to interference and improving communication quality over long distances.

Environmental Awareness

Being aware of potential sources of interference in the environment can help operators take preventative measures. For instance, avoiding flights near industrial areas or high-density Wi-Fi zones can reduce the risk of interference from other electronic devices.

Security Risks in Drone Communication Systems

Drone communication systems, which often operate on public radio frequencies, can be vulnerable to several types of security threats. One of the most common risks is signal interception, where unauthorized individuals could potentially listen to or capture data transmitted between the drone and its controller. In more advanced cases, a drone may even be susceptible to “spoofing” attacks, where a malicious entity sends counterfeit signals to trick the drone into responding as if they were legitimate commands from its controller.

Another significant concern is jamming, where external signals overwhelm the drone’s frequency, effectively severing the connection between the drone and its operator. In extreme cases, jamming could result in the drone losing control, potentially leading to crashes or unintended flight paths. For professional applications, such as those used in surveillance, critical infrastructure inspection, or military operations, the stakes are even higher. A security breach could lead to the compromise of sensitive data, operational disruptions, or even physical damage.

Key Security Measures to Protect Drone Communication

To counter these risks, a variety of security measures have been implemented across drone communication systems, each designed to enhance the confidentiality, integrity, and authenticity of the data transmitted between drones and their controllers.

Encryption

One of the most fundamental security measures is encryption. By encrypting the data transmitted between the drone and the controller, it becomes significantly more difficult for unauthorized parties to intercept and understand the information. Even if a third party were to capture the encrypted signal, they would need the correct decryption key to access the data. Many modern drones employ encryption standards like AES (Advanced Encryption Standard) to secure their communications, providing a robust line of defense against eavesdropping.

Authentication Protocols

Authentication is another crucial layer of security that ensures only authorized devices can connect to and control the drone. By using unique identifiers, such as digital certificates or encrypted tokens, drones can verify the authenticity of incoming signals before responding to them. This process is akin to a digital handshake, where the drone and controller exchange information to confirm each other’s identities. If the verification fails, the drone ignores the command, effectively blocking unauthorized access. Multi-factor authentication, which involves multiple layers of verification, is becoming more common, particularly in professional and military-grade drones.

Frequency Hopping

Frequency Hopping Spread Spectrum (FHSS) is a technique that significantly enhances the security of drone communication. By rapidly switching the carrier frequency of the signal between a set range of frequencies, frequency hopping makes it challenging for hackers to lock onto and jam the signal. Since the hopping pattern is known only to the transmitter and receiver, any attempt to intercept or disrupt the communication would need to predict the next frequency in the sequence, which is extremely difficult without advanced equipment and knowledge of the system.

Failsafe Mechanisms and Redundant Communication Paths

Many drones are equipped with failsafe mechanisms to counter the risks of signal jamming or loss. For example, when a drone detects that it has lost communication with its controller, it can automatically activate a Return-to-Home (RTH) function, guiding the drone back to a pre-designated safe location. In some advanced models, redundant communication paths are employed, where the drone can switch to a secondary communication channel if the primary one fails. This redundancy minimizes the risk of complete communication breakdown, especially in mission-critical scenarios.

Regular Firmware Updates and Security Patches

Firmware updates are a crucial, yet often overlooked, aspect of drone security. Manufacturers frequently release updates that patch vulnerabilities, enhance encryption protocols, and improve overall system resilience. For drone operators, staying vigilant about firmware updates is an essential step in maintaining a secure communication system. By keeping the drone’s firmware up to date, operators can mitigate potential risks associated with outdated software, which may be more susceptible to hacking and other security threats.

Geo-fencing and Controlled Airspace Restrictions

To protect sensitive areas and prevent unauthorized access, geo-fencing technology is often used to create virtual boundaries around restricted zones. This technology can automatically prevent the drone from entering or flying over certain areas, such as airports, government facilities, or other critical infrastructure. By combining geo-fencing with authentication and encryption, drone operators can ensure that their UAVs remain compliant with legal restrictions and reduce the risk of accidental or intentional incursions into restricted airspace.

Adapting to Emerging Security Threats

As drones become more sophisticated, so do the threats posed by malicious actors. With advancements in hacking techniques and the proliferation of drone-jamming devices, ongoing research and development in drone security are essential. The integration of machine learning and artificial intelligence (AI) into drone communication systems represents a promising frontier in enhancing security. For instance, AI algorithms can analyze communication patterns in real-time, quickly identifying and responding to anomalies that could indicate a security breach.

In the future, we may also see more robust cybersecurity standards and regulations specifically targeting drone technology. Agencies like the Federal Aviation Administration (FAA) and the European Union Aviation Safety Agency (EASA) are already working on guidelines and regulations to ensure that drone operations are both safe and secure. By adhering to these evolving standards, drone manufacturers and operators can help safeguard their communication systems against emerging threats.

The Importance of a Proactive Security Approach

In summary, ensuring the security of drone communication systems is a multifaceted challenge that requires a proactive approach. By combining encryption, authentication protocols, frequency hopping, and other security measures, drone operators can significantly reduce the risk of unauthorized access and interference. Staying informed about the latest threats and regularly updating the drone’s software are equally important steps in maintaining a secure system.

Ultimately, as the use of drones continues to expand, so does the need for robust security measures. From hobbyists to professionals, understanding and implementing these security strategies will help protect not only the drone and its data but also the safety and privacy of those around it.

How Real-Time Data Transmission Works in Drone Communication Systems

At its core, real-time data transmission involves sending data from the drone to the controller or a ground station, usually via radio frequencies like 2.4 GHz, 5.8 GHz, or, increasingly, 4G and 5G networks. These data transmissions include telemetry information, such as the drone’s altitude, speed, GPS coordinates, and battery levels, as well as environmental sensor readings. For drones with cameras, the system simultaneously transmits live video feeds, which require high bandwidth and low latency to ensure smooth and accurate visuals.

To achieve this, drones rely on data link modules, which consist of transmitters and receivers capable of sending and receiving data at high speeds. These modules often incorporate error correction protocols to ensure data integrity, compensating for potential signal degradation or interference. In addition to transmitting data back to the controller, some advanced drones can relay this information directly to cloud servers or data management systems, enabling real-time data analysis and remote monitoring by teams located far from the drone’s operation site.

Technologies Behind Real-Time Video Feeds

For drones equipped with cameras, real-time video transmission relies on sophisticated technologies designed to handle high-definition (HD) and ultra-high-definition (UHD) video. The quality and speed of video feeds depend on several factors, including the bandwidth of the transmission channel, the video compression standard used, and the available network infrastructure.

Video Transmission Protocols

Different protocols are used to ensure that video feeds are transmitted with minimal delay and maximum clarity:

• DJI Lightbridge and Ocusync: These proprietary technologies developed by DJI are widely regarded for their ability to transmit HD video over several kilometers. They operate on the 2.4 GHz and 5.8 GHz frequencies and utilize adaptive frequency hopping to reduce interference, providing stable, high-quality video suitable for professional applications.
• Wi-Fi-Based Protocols: Many consumer drones use Wi-Fi for video transmission, typically on the 2.4 GHz or 5 GHz bands. While Wi-Fi is cost-effective and provides decent range and quality for consumer use, it can be prone to interference, especially in densely populated areas where multiple Wi-Fi networks coexist.
• 4G/5G Networks: Recently, some drones have started using cellular networks for video transmission. This approach is especially useful for long-range applications, as 4G and 5G networks provide extensive coverage and high bandwidth. Using cellular networks also allows operators to control drones and receive live video feeds from virtually anywhere with network coverage, enabling beyond-visual line-of-sight (BVLOS) operations.

Video Compression Standards

To efficiently transmit high-definition video over limited bandwidth, drones employ video compression standards that reduce the size of the video stream without significantly compromising quality.

• H.264: Widely used for HD video streaming, H.264 provides a good balance between compression efficiency and video quality. It is suitable for most consumer drones and supports resolutions up to 4K.
• H.265 (HEVC): H.265 offers even greater compression efficiency than H.264, making it ideal for UHD video streaming. By using H.265, drones can transmit 4K and even 8K video with less bandwidth, which is beneficial for professional applications that require high-resolution visuals.

Applications of Real-Time Video Feeds

The ability to stream real-time video from a drone opens up a wide range of applications across industries:

• Cinematic Production: In film and television, drones provide stunning aerial shots that add depth and perspective to visual storytelling. Real-time video feeds allow directors and cinematographers to monitor footage on the fly, ensuring they capture the perfect shot without needing to wait for post-production.
• Surveillance and Security: For law enforcement, security companies, and emergency responders, real-time video feeds from drones are invaluable tools. They enable teams to monitor large areas, track suspects, or assess dangerous situations remotely, enhancing situational awareness and enabling quick decision-making.
• Search and Rescue: Drones equipped with thermal imaging cameras can provide real-time video feeds that highlight heat signatures, making it easier to locate missing persons in challenging terrains or disaster zones. Immediate access to this video allows rescue teams to act swiftly, potentially saving lives.
• Industrial Inspections: In industries like oil and gas, construction, and agriculture, real-time video feeds from drones can be used to inspect infrastructure, monitor progress, and gather data for analysis. For instance, drones can quickly survey large fields, capture details of pipelines, or inspect the integrity of tall structures like wind turbines, all while operators view the feed live.

Challenges in Real-Time Data Transmission

While real-time data transmission offers numerous benefits, it also comes with challenges that can impact performance and reliability:

• Bandwidth Limitations: Transmitting high-quality video requires substantial bandwidth, especially for HD or UHD feeds. If the available bandwidth is limited, video quality may degrade, or there could be delays in the feed, which can hinder real-time decision-making.
• Latency: Low latency is crucial for real-time applications, particularly for FPV (First-Person View) drone racing and live broadcasts. High latency can lead to a delay between the drone’s movements and what the operator sees on the screen, complicating control and reducing responsiveness.
• Signal Interference: Real-time video feeds are sensitive to interference from other electronic devices, physical obstructions, and environmental factors. Any disruption in the signal can cause the video to freeze, degrade, or drop altogether, which can compromise the effectiveness of the operation.
• Data Security: Given the sensitivity of live video feeds, especially in surveillance and security applications, encryption and secure transmission protocols are essential to prevent unauthorized access and protect data integrity.

Enhancing Real-Time Transmission with Advanced Technologies

To address these challenges, drone manufacturers are continually refining their communication systems with advanced technologies:

• Dual-Frequency Systems: By using two frequencies, such as 2.4 GHz for control and 5.8 GHz for video, drones can separate data streams, reducing interference and improving overall performance. Some drones can also dynamically switch between frequencies based on real-time conditions.
• Artificial Intelligence (AI): AI algorithms can optimize video compression and transmission by dynamically adjusting bit rates and resolution according to the available bandwidth and network conditions. This ensures a smooth and reliable video feed even in fluctuating environments.
• 5G Integration: As 5G networks expand, drones are increasingly leveraging these networks for higher bandwidth and lower latency, facilitating smoother, higher-quality video feeds over longer distances. This can greatly enhance applications that require real-time visuals, like remote inspections and disaster response.

In summary, real-time data transmission and video feeds are integral to modern drone operations, providing crucial information and visuals that empower operators to make informed decisions on the spot. Through the use of adaptive frequency selection, advanced compression standards, and new network technologies, drones continue to improve their real-time communication capabilities, paving the way for even more diverse and impactful applications.

Autonomous Drone Communication Systems and Future Trends

As drones become increasingly sophisticated, autonomy has emerged as a key area of development. Autonomous drones can operate with minimal human intervention, relying on advanced communication systems to make decisions, navigate environments, and even coordinate with other drones. This transition from manual to autonomous control marks a significant evolution in drone technology, expanding the potential applications of drones across industries. Alongside autonomy, future trends such as artificial intelligence (AI), machine learning (ML), 5G connectivity, and swarm technology are poised to redefine what drones can achieve.

The Role of Communication in Autonomous Drone Systems

For a drone to operate autonomously, it requires a communication system that not only supports basic control and data transmission but also facilitates real-time decision-making. Autonomous drones must be able to process vast amounts of data from onboard sensors, such as GPS, cameras, LiDAR, and radar, to navigate and avoid obstacles. This data is then used to make instantaneous decisions, which often necessitates a highly responsive communication link.

In fully autonomous operations, drones also communicate with ground control systems or cloud-based platforms to receive updates, share telemetry data, and access external data resources, like weather or traffic information. Reliable communication is essential for these processes, enabling the drone to operate safely, adapt to changing conditions, and complete its mission accurately.

Key Components of Autonomous Drone Communication

1. Sensor Integration and Data Fusion Autonomous drones are equipped with various sensors that feed data into the onboard computer for real-time analysis. This integration of data from multiple sources, known as data fusion, allows the drone to build a comprehensive understanding of its surroundings. For example, GPS provides location data, LiDAR and radar measure distances to obstacles, and cameras offer visual context. The drone’s communication system must be capable of managing this data in real time, ensuring that the autonomous system responds accurately to environmental changes.
2. AI Machine learning and ML are critical to the autonomy of drones, enabling them to learn from data and improve their decision-making processes over time. AI algorithms allow drones to recognize objects, detect anomalies, and optimize flight paths. Machine learning models can be trained on vast datasets to predict environmental changes, identify obstacles, and even anticipate the behavior of other drones or vehicles. As autonomous drones operate, they collect data that can be used to further refine their AI models, enhancing their performance on future missions. Communication systems play a crucial role in this continuous learning process by transmitting data to and from AI processing units, which may be located onboard the drone or in the cloud.
3. Swarm Technology and Inter-Drone Communication One of the most exciting applications of autonomous drones is swarm technology, where multiple drones operate together as a coordinated unit. Swarm drones communicate with each other in real-time, sharing information about their position, speed, and environmental factors to achieve collective goals. This capability is made possible through inter-drone communication protocols that enable drones to form a dynamic mesh network. In swarms, each drone acts as both a transmitter and receiver, relaying data throughout the network. This enables the swarm to operate as a single entity, which is beneficial for tasks like search and rescue, agricultural monitoring, and large-scale environmental surveys. The communication challenges for swarm drones are unique, as they require highly responsive, low-latency links to maintain synchronization and avoid collisions.

Emerging Trends in Autonomous Drone Communication

1. 5G Connectivity and Beyond The rollout of 5G networks is transforming drone communication, offering faster data speeds, lower latency, and broader coverage. For autonomous drones, 5G provides the bandwidth necessary to support real-time video streaming, complex data analytics, and cloud-based AI processing. By leveraging 5G, drones can transmit data directly to cloud servers for processing, enabling advanced capabilities like real-time object recognition and predictive analytics. Looking ahead, the potential introduction of 6G technology could further enhance these capabilities. With the promise of even faster speeds and ultra-low latency, 6G could support advanced applications like fully immersive remote control, augmented reality (AR) integration, and seamless inter-drone communication over long distances.
2. Edge Computing Edge computing is a trend that complements 5G, bringing data processing closer to the drone itself, rather than relying solely on distant cloud servers. By processing data at the “edge” of the network—often on the drone or a nearby ground station—drones can reduce latency, conserve bandwidth, and operate with greater independence. For autonomous drones, edge computing enables real-time decision-making by processing sensor data directly onboard. This is particularly valuable in situations where connectivity is limited, or data privacy is a concern. As edge computing technology advances, drones will be able to perform increasingly complex analyses without relying on remote resources, which enhances their versatility and resilience.
3. Blockchain for Secure Communication As autonomous drones become more integrated into commercial and governmental operations, secure communication will be paramount. Blockchain technology offers a potential solution by providing a decentralized and tamper-resistant way to verify and record drone communications. By utilizing blockchain, drones can create secure transaction records of their data exchanges, which enhances accountability and prevents unauthorized tampering. Blockchain can also facilitate secure inter-drone communication within swarms, ensuring that only verified drones can participate in collective operations. Although blockchain for drones is still an emerging field, its potential for securing autonomous drone networks could be transformative.
4. Improved AI and Machine Learning Models The future of autonomous drones will also see advancements in AI and ML models, enabling drones to perform tasks that currently require human oversight. For instance, AI models trained on large datasets could allow drones to autonomously navigate complex urban environments, identify structural damage in infrastructure, or even monitor wildlife in remote areas. These capabilities will depend heavily on secure, reliable communication systems that can handle large data flows and ensure the drone’s actions are consistent with mission goals.

Anticipated Applications of Autonomous Drones

The future holds numerous promising applications for autonomous drones. In agriculture, for example, autonomous drones equipped with multispectral cameras could continuously monitor crop health, detect disease, and optimize irrigation, all without human intervention. In logistics, fully autonomous drones could transport goods between distribution centers, leveraging swarm technology to operate safely in dense airspaces.

Another anticipated application is in urban air mobility, where autonomous drones may become part of an integrated transportation system, shuttling people and goods across cities. These drones will rely on advanced communication protocols to coordinate with each other and with ground-based traffic systems, ensuring safety and efficiency.

Challenges and Considerations for the Future

While the future of autonomous drones is bright, there are challenges to overcome. Ensuring the security and resilience of communication systems will be essential, as autonomous drones will be increasingly entrusted with critical tasks. Regulations will also play a pivotal role, with agencies like the FAA working to develop standards that ensure safe integration into airspaces shared with manned aircraft.

Moreover, as drone autonomy progresses, public acceptance will hinge on transparency and reliability. Operators and manufacturers will need to demonstrate that autonomous drones are not only efficient but also safe and secure. By addressing these concerns and continuing to invest in advanced communication technologies, the drone industry can pave the way for a future where autonomous drones are a common—and trusted—part of daily life.

Regulatory Considerations in Drone Communication Systems

As drones continue to proliferate across various sectors, from recreation to critical infrastructure inspection, regulatory bodies around the world are stepping up efforts to establish comprehensive frameworks governing their use. Effective regulations are essential to ensure drones operate safely within shared airspaces, protect privacy, and prevent misuse. Drone communication, in particular, is subject to stringent regulatory oversight because it involves radio frequency use, data security, and operational restrictions that impact both public safety and national security.

The Role of Regulatory Bodies

In the United States, the primary agencies overseeing drone operations are the Federal Aviation Administration (FAA) and the Federal Communications Commission (FCC). The FAA is responsible for regulating the flight aspects of drones, including pilot certification, airspace restrictions, and operational guidelines. Meanwhile, the FCC governs the radio frequencies that drones use for communication, ensuring that they operate within legally permitted bands and do not interfere with other critical communication services.

Other countries have similar agencies, such as the European Union Aviation Safety Agency (EASA) in Europe and the Civil Aviation Administration of China (CAAC) in China, which set their own rules and guidelines. Despite differences in specific regulations, these bodies share common goals: ensuring drone operations are safe, secure, and compliant with existing airspace management and communication standards.

Key Regulations Impacting Drone Communication

Radio Frequency Licensing and Spectrum Allocation

One of the primary regulatory considerations for drone communication is the allocation and use of radio frequencies. Drones typically operate on unlicensed frequencies like 2.4 GHz and 5.8 GHz, which are globally accepted for consumer use. However, for drones that need to operate on other frequencies, such as 900 MHz or 1.3 GHz, special licenses may be required depending on the country.

The FCC, for instance, manages the spectrum in the United States and ensures that drones using licensed frequencies do not interfere with other critical services like aviation, public safety, or telecommunications. The agency has strict guidelines on power limits and allowable frequencies, particularly for commercial and long-range drones. Operators must ensure that their drones comply with these standards to avoid fines, penalties, or operational restrictions.

Beyond Visual Line of Sight (BVLOS) Regulations

Operating a drone beyond the visual line of sight (BVLOS) is highly sought after for applications like delivery services, agricultural monitoring, and long-range inspections. However, BVLOS operations require advanced communication systems that maintain reliable connections over extended distances. Due to the inherent risks associated with BVLOS flights—such as loss of control and potential collisions with manned aircraft—most countries impose strict regulations on these operations.

The FAA, for example, requires operators to obtain a waiver to fly BVLOS and mandates additional safety measures like redundant communication systems and detect-and-avoid capabilities. These requirements ensure that drones can communicate with ground control stations or cloud-based platforms even when they are out of the operator’s sight, reducing the risk of accidents.

Data Security and Privacy Regulations

As drones become increasingly connected to cloud networks and transmit live data, regulators are paying closer attention to data security and privacy issues. Drones often collect sensitive information, whether through video surveillance, environmental monitoring, or personal data collection, raising concerns about unauthorized access and misuse.

In response, the FAA and EASA have outlined data protection guidelines that encourage or require encryption and secure transmission protocols for drones handling sensitive data. Additionally, regulatory frameworks like the European Union’s General Data Protection Regulation (GDPR) apply to drones that collect personal data, requiring operators to obtain consent, ensure data security, and provide transparency about data usage.

Certification and Compliance Standards for Commercial Drones

Commercial drones are subject to more rigorous certification requirements than recreational drones, particularly those used in high-stakes applications like construction, inspection, or law enforcement. In the U.S., the FAA mandates that commercial drone operators hold a Part 107 certification, which covers operational limits, airspace classifications, and communication standards. Part 107-certified drones must also comply with specific requirements regarding radio frequencies, communication range, and data transmission security.

In addition to national certifications, international standards organizations like the International Organization for Standardization (ISO) have developed guidelines for drone operations. These include standards on data management, quality assurance, and safety protocols, which help harmonize global drone practices and facilitate cross-border operations.

Restricted Airspace and Geo-Fencing

To prevent drones from entering sensitive or restricted areas, regulatory bodies enforce geofencing and airspace restrictions. Airports, military bases, and government buildings are often surrounded by restricted zones where drone flights are prohibited or severely limited. Advanced drones are often equipped with geo-fencing technology that automatically prevents them from flying into these areas, aligning with FAA and EASA regulations.

These restrictions are crucial for protecting manned aircraft and critical infrastructure. Violating restricted airspace can lead to severe penalties, including fines, drone confiscation, and, in extreme cases, legal action. Operators are encouraged to consult airspace maps and use applications like LAANC (Low Altitude Authorization and Notification Capability) in the U.S., which provides real-time information on airspace restrictions and allows for approved access in certain cases.

Navigating Future Regulatory Changes

As drone technology advances, regulatory bodies are continually updating their frameworks to address new challenges and opportunities. Future regulations are likely to focus on issues like swarm technology, where multiple drones operate as a coordinated unit, and urban air mobility (UAM), where drones could transport goods or passengers across cities. These emerging trends require robust communication systems and stringent safety protocols, prompting regulators to consider how best to integrate them into existing airspace management systems.

Additionally, as 5G connectivity becomes more widespread, we may see regulations that address how drones use these networks for real-time data transmission. While 5G opens up possibilities for BVLOS operations and high-quality video streaming, it also raises concerns about network congestion and potential security vulnerabilities, which regulators will need to address.

Balancing Innovation with Safety and Privacy

Regulatory considerations are not merely bureaucratic hurdles; they are essential for fostering public trust and ensuring the responsible development of drone technology. By setting clear guidelines on communication standards, data security, and airspace restrictions, regulators enable innovation while safeguarding the public’s interests. For drone operators, staying informed about the latest regulations is key to ensuring compliance, avoiding legal issues, and operating safely.

Manufacturers and operators alike play a role in shaping these regulations by engaging in public consultations and contributing to the development of industry standards. As drone technology continues to evolve, a collaborative approach between regulators, industry stakeholders, and the public will be vital to creating a balanced framework that promotes innovation while protecting safety, security, and privacy.

Conclusion

Drone communication systems are the backbone of UAV operations, enabling precise control, real-time data transmission, and the secure exchange of information. From basic consumer models to advanced professional drones, the intricacies of radio frequencies, modulation techniques, and communication protocols all work together to provide stability, reliability, and adaptability. As the drone industry evolves, emerging technologies like AI, 5G connectivity, and swarm communication are opening new possibilities for autonomy and functionality, transforming drones from remote-controlled devices into intelligent, interconnected machines.

Regulations play a crucial role in guiding this development, ensuring that drones operate safely, respect privacy, and avoid interference with other communication systems. By staying informed about regulatory requirements and advancements in technology, operators and enthusiasts alike can make the most of drone capabilities while adhering to safety and compliance standards.

In the future, we can expect drone communication systems to become even more advanced, secure, and integrated into everyday life. With ongoing innovations and a robust regulatory framework, the potential applications of drones will only continue to expand, making them indispensable tools across industries.

Frequently Asked Questions (FAQs)

What frequencies do drones commonly use for communication?

Drones typically operate on frequencies such as 2.4 GHz and 5.8 GHz, which are widely accepted for both consumer and commercial use. Some professional and custom-built drones may also use other bands, such as 900 MHz or 1.3 GHz, to extend range or improve penetration through obstacles. The choice of frequency impacts range, data transmission speed, and susceptibility to interference.

How do drones maintain secure communication links?

Drones use a combination of encryption, authentication protocols, and frequency-hopping techniques to ensure secure communication. Encryption protects transmitted data from unauthorized access, while authentication protocols ensure that only verified devices can control the drone. Frequency-hopping helps to minimize the risk of jamming and interception by constantly switching the operating frequency during transmission.

What are the main regulatory bodies overseeing drone communication?

In the United States, the FAA (Federal Aviation Administration) and FCC (Federal Communications Commission) oversee drone operations and radio frequency use, respectively. Internationally, agencies like the EASA (European Union Aviation Safety Agency) and CAAC (Civil Aviation Administration of China) regulate drone activity. These agencies establish guidelines on flight operations, frequency use, data security, and airspace restrictions to ensure safety and compliance.

Can drones transmit live video in real time, and how is it achieved?

Yes, drones can transmit live video feeds in real time using radio frequencies or cellular networks. Video transmission systems, such as DJI’s Lightbridge and Ocusync, utilize 2.4 GHz or 5.8 GHz frequencies for high-definition streaming over several kilometers. Advanced drones may use 4G or 5G networks to support long-range video transmission, particularly in BVLOS (Beyond Visual Line of Sight) operations.

What is BVLOS, and why is it regulated?

BVLOS stands for Beyond Visual Line of Sight, which refers to operating a drone beyond the pilot’s direct line of sight. BVLOS operations are regulated due to the increased risks associated with long-range flights, such as losing control or colliding with other aircraft. Most countries require special permissions or waivers for BVLOS, along with additional safety measures like redundant communication systems and real-time monitoring.

What future trends are expected in drone communication technology?

Emerging trends in drone communication include 5G connectivity, which will enable faster data transmission and lower latency, enhancing applications like autonomous navigation and real-time video streaming. Swarm technology, where multiple drones operate as a coordinated unit, and edge computing for on-device processing, are also gaining traction. In addition, blockchain technology may be used to secure drone communications and improve data integrity.

Are drones vulnerable to hacking or interference?

While drone communication systems are designed to be secure, they can still be susceptible to interference from other electronic devices or jamming attempts. Advanced drones utilize encryption and frequency-hopping techniques to protect against hacking, but operators should always be aware of potential risks, particularly in high-stakes or professional applications.

What should I consider when choosing a drone based on its communication system?

When choosing a drone, consider factors like the frequency range (to ensure compatibility with your operating environment), the range of communication (especially if you plan to fly BVLOS), and the type of data transmission needed (such as real-time video or telemetry). Also, look for features like encryption and failsafe mechanisms, which are crucial for secure and reliable operation.

How do drones communicate in autonomous operations?

Autonomous drones rely on advanced communication systems to receive real-time data from sensors, make decisions, and interact with other drones or ground stations. These systems often use AI and machine learning to process data and adapt to their environment. Swarm drones, for example, use inter-drone communication protocols to share information and coordinate movements, creating a dynamic and efficient operation.

How often should I update my drone’s firmware for communication security?

Regular firmware updates are essential for maintaining the security and performance of a drone’s communication system. Manufacturers release updates to fix vulnerabilities, enhance encryption, and improve overall reliability. Staying up-to-date ensures your drone is protected against emerging threats and compliant with the latest regulations.
